ST5750 电子歧管仪产品详细规格
技术参数
压力量程（相对压力) | -100至6000Kpa / -0.1至6Mpa/ -14.5至870psi / -1至60bar |
过载压力 |
|
| 压力分辨 | 1Kpa、0.01bar、0.1psi、0.001Mpa(负压时0.01Mpa ) |
E型热电偶温度显示 | 测量范围：-200~1000'℃ (-328"F～1832°F) 分辨率： 0.1 ℃(0.1'F) |
温度量程 | -10-200℃/14-392°F |
| 温度分辨率 | 温度分辨率:0.1°℃/0.1F |
| 可选制冷剂（83种） | R11、R12、R123、R124、R125、R1270、R13、R134A、R14、R141b、R142b、R143A、R152A、R170、R21、R218、R22、R227E、R23、R236E、R245C、R245、R290、R32、R401A、R401b、R401C、R402A、R402b、R403A、R403b、R404A、R405A、R406A、R407A、R407b、407C、R407d、R407E、R408A、R409A、R409b、R41、R410A、R410b、R11A、R411b、R412A、R413A、R414A、R414b、R415A、R415b、R416A、R417A、R418A、R419A、R420A、R421A、R421b、R422A、R422b、R422C、R422d、R423A、R424A、R425A、R426A、R427A、R428A、R50、R500、R501、R502、R503、R504、R507A、R508A、R508b、R509A、R600.R600A、R717 |
操作温度 | 0至45℃ |
| 存储温度 | -20至60°℃ |
环境湿度 | 10%RH至90%RH |
电源 | 4节AA电池 |
尺寸 | 204X116X65MM |

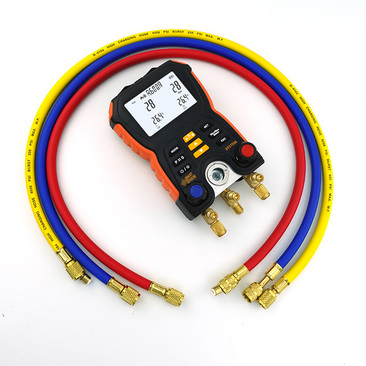

附件 | 工具箱、软管（红、黄、蓝各一根)、说明书、4节AA碱性电池、温度夹x2 |
