GPP-系列线性GPP-1326,GPP-2323,GPP-3060,GPP-6030,GPP-3323,GPP-4323多通道可编程直流电源产品详细规格
快速选型
| 型号 | 电流 | 电压 | 通道数 | 备注 | 标配接口 |

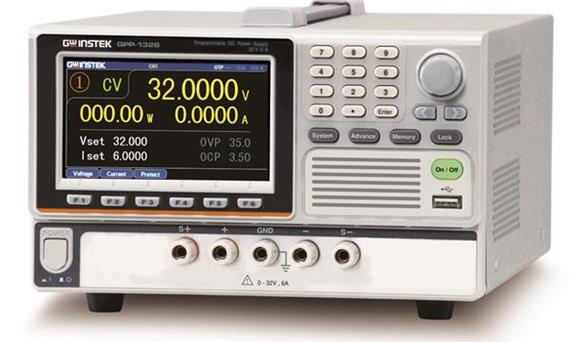

| GPP-1326 | 6A | 32V | 1 | 32V/6A | USB/RS232/I/O |

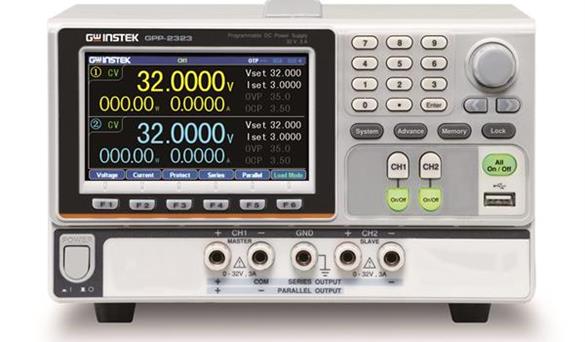

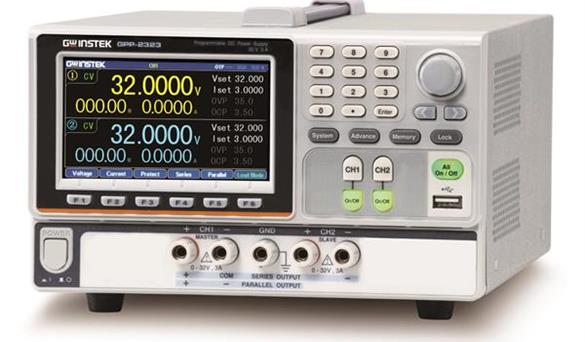

| GPP-2323 | 3A | 32V | 2 | 32V/3A,32V/3A | USB/RS232/I/O |
| GPP-3060 | 6A | 30V | 3 | 30V/6A,30V/6A,5V/5A | USB/RS232/I/O |
| GPP-6030 | 3A | 60V | 3 | 60V/3A,60V/3A,5V/5A | USB/RS232/I/O |
| GPP-3323 | 5A | 32V | 3 | 32V/3A,32V/3A,5V/5A | USB/RS232/I/O |
| GPP-4323 | 3A | 32V | 4 | 32V/3A,32V/3A,5V/1A,15V/1A | USB/RS232/I/O |
| 详细规格 | |||||||
| GPP-3060 | GPP-6030 | ||||||
| 输出模式 | 通道 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| 电压 | 0~30V | 0~30V | 1.8/2.5/3.3/5.0V | 0~60V | 0~60V | 1.8/2.5/3.3/5.0V | |
| 电流 | 0~6A | 0~6A | 5A | 0~3A | 0~3A | 5A | |
| Tracking 串联电压 | 0~60V | ---- | 0~120V | ---- | |||
| Tracking 并联电流 | 0~12A | 0~6A | |||||
| 恒压操作 | 线性调节 | ≤0.01%+3mV | |||||
| 负载调节 | ≤0.01%+5mV (额定电流≤10A) | ||||||
| 纹波 & 噪声 (5Hz - 1MHz) | ≤1mVrms | ||||||
| 恢复时间 | ≤100μs（50%负载变动，小负载0.5A） | ||||||
| 恒流操作 | 线性调节 | ≤0.01%+3mA | |||||
| 负载调节 | ≤0.01%+3mA | ||||||
| 纹波 & 噪声 | ≤2mArms | ||||||
| 编程分辨率 | 编程电压分辨率 | 1mV | 2mV | ||||
| 编程电流分辨率 | 0.2mA | 0.1mA | |||||
| Tracking操作 (CH1,CH2) | Tracking 误差 | 主机≤ 0.1% +10mV (空载 , 带载加载调节≤100mV) | 主机≤ 0.2% +20mV (空载 , 带载加载调节≤100mV) | ||||
| 并联调节 | 线性:≤ 0.01% + 3mV | ||||||
| 负载:≤ 0.01% + 5mV (额定电流 ≤ 10A) ;≤ 0.02% + 5mV (额定电流 > 10A) | |||||||
| 串联调节 | 线性:≤ 0.01% + 5mV；负载:≤ 200mV | ||||||
| 纹波 & 噪声 (5Hz - 1MHz) | ≤2mVrms,5Hz~1MHz | ||||||
| CH3 操作 | 输出电压 | 1.8V/2.5V/3.3V/5.0V, ±5% | |||||
| 输出电流 | 5A | ||||||
| 线性调节 | ≤3mV | ||||||
| 负载调节 | ≤5mV | ||||||
| 纹波 & 噪声 | 2mVrms(5Hz~1MHz) | ||||||
| 瞬态恢复时间 | ≤100us | ||||||
| USB端口输出 | 1.8V/2.5V/3.3V/5.0V, ±0.35V, 3A | ||||||
| Meter | 电压分辨率 | 0.1mV | - | 0.1mV | - | ||
| 电流分辨率 | 0.1mA | 0.1mA | |||||
| 设置精度 | ≤±(0.03% + 10mV) | - | ≤±(0.03% + 10mV) | - | |||
| ≤±(0.30% + 10mA) | - | ≤±(0.30% + 10mA) | - | ||||
| 回读精度 | ≤±(0.03% + 10mV) | - | ≤±(0.03% + 10mV) | - | |||
| ≤±(0.30% + 10mA) | - | ≤±(0.30% + 10mA) | - | ||||
| DC负载特性 | 通道 | 2 | 2 | ||||
| 显示功率 | 0~50.00W | 0~50.00W | |||||
| 显示电压 | 1~32.00V | 1~62.00V | |||||
| 显示电流 | 0~6.200A | 0~3.200A | |||||
| CV 模式范围 | 1.500V ~ 32.00V | 1.500V ~ 62.00V | |||||
| 分辨率 | 10mV | 10mV | |||||
| 设定精度 | ≤0.1%+30mV | ≤0.1%+30mV | |||||
| 读取精度 | ≤0.1%+30mV | ≤0.1%+30mV | |||||
| CC 模式范围 | 0 ~ 3.200A | 0 ~ 3.200A | |||||
| 分辨率 | 1mA | 1mA | |||||
| 设定精度 | ≤0.3%+10mA | ≤0.3%+10mA | |||||
| 读取精度 | ≤0.3%+10mA | ≤0.3%+10mA | |||||
| CR 模式范围 | 1 ~ 1K Ω | 1 ~ 1K Ω | |||||
| 分辨率 | 1 Ω | 1 Ω | |||||
| 设定精度 | ≤±(3%+1 Ω) 电压≥ | ≤±(3%+1 Ω) (电压≥ | |||||
| 读取精度 | 0.1V, 电流≥0.1A) | 0.1V, 电流≥0.1A) | |||||
| 隔离 | 机架和端子 | ≥20MΩ (DC 500V) | |||||
| 机架和AC电源线 | ≥30MΩ (DC 500V) | ||||||
| 环境条件 | 操作温度 | 0~40℃ | |||||
| 存储温度 | -10~70℃ | ||||||
| 操作湿度 | ≤80% RH | ||||||
| 存储湿度 | ≤70% RH | ||||||
| 其他 | 电源 | AC100V/120V/220V/ 230V±10%, 50/60Hz | |||||
| 尺寸& 重量 | 213(W)x 145(H) x 362(D) mm ; 约 10kg | ||||||
| 详细规格 | |||||||||||
| GPP-4323 | GPP-3323 | GPP-2323 | GPP-1326 | ||||||||
| 输出模式 | 通道 | CH1 | CH2 | CH3 | CH4 | CH1 | CH2 | CH3 | CH1 | CH2 | CH1 |
| 电压 | 0~32V | 0~32V | 0~5V | 0~15V | 0~32V | 0~32V | 1.8/2.5/3.3/5.0V | 0~32V | 0~32V | 0~32V | |
| 电流 | 0~3A | 0~3A | 0~1A | 0~1A | 0~3A | 0~3A | 5A | 0~3A | 0~3A | 0~6A | |
| Tracking 串联电压 | 0~64V | ---- | 0~64V | ---- | 0~64V | ---- | |||||
| Tracking 并联电流 | 0~6A | 0~6A | 0~6A | ||||||||
| 恒压操作 | 线性调整率 | ≤0.01%+3mV | |||||||||
| 负载调整率 | ≦0.01%+3mV(rating current≤3A)≦0.02%+5mV(rating current > 3A) | ||||||||||
| 纹波 & 噪声(5Hz - 1MHz) | ≤350μVrms/2mVpp | ≤1mVrms | ≤350μVrms/2mVpp | ≤2mVrms | ≤350μVrms/2mVpp | ≤500μVrms/6mVpp | |||||
| 恢复时间 | ≦50μs | ≤50μs | ≤50μs | ≤100μs | |||||||
| 恒流操作 | 线性调整率 | ≦0.2%+3mA | |||||||||
| 负载调整率 | ≦0.2%+3mA | ||||||||||
| 纹波 & 噪声 | ≦2mArms | ≤2mArms | ≤2mArms | ≤4mArms | |||||||
| 编程分辨率 | 编程电压分辨率 | 1mV | 1mV | - | 1mV | 1mV | |||||
| 编程电流分辨率 | 0.1mA | 0.1mA | - | 0.1mA | 0.2mA | ||||||
Tracking操作 (CH1,CH2) | Tracking 误差 | 主机≦0.1%+10mV of Master(0~32V) ，空载 ，带载加载调节≦100mV) | |||||||||
| 并联调整率 | 线性: ≦0.01%+3mV负载:≦0.01%+3mV(额定电流≦3A) ≦0.02%+5mV(额定电流＞3A) | ||||||||||
| 串联调整率 | 线性: ≦0.01%+5mV负载:≦100mV | ||||||||||
| 纹波 & 噪声(5Hz - 1MHz) | ≤1mVrms | ||||||||||
CH3 Operation for (3323) | 输出电压 | 1.8V/2.5V/3.3V/5.0V, ±5% | |||||||||
| 输出电流 | 5A | ||||||||||
| 线性调整率 | ≦3mV | ||||||||||
| 负载调整率 | ≦5mV | ||||||||||
| 纹波 & 噪声 | 2mVrms(5Hz~1MHz) | ||||||||||
| 瞬态恢复时间 | 100us | ||||||||||
| USB 端口输出 | 1.8V/2.5V/3.3V/5.0V, ±0.35V, 3A | ||||||||||
| Meter | 电压分辨率 | 0.1mV | 0.1mV | - | 0.1mV | 0.1mV | |||||
| 电流分辨率 | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | |||||||
| 设置/回读 精度 | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | ≤±(0.03% + 10mV)≤±(0.30% + 10mA) | |||||||
| DC 负载特性 | 通道 | 2 | - | 2 | - | 2 | 1 | ||||
| 显示功率 | 50.00W | 50.00W | 50.00W | 100.00W | |||||||
| 显示电压 | 0~33.00V | 0~33.00V | 0~33.00V | 0~33.00V | |||||||
| 显示电流 | 0~3.200A | 0~3.200A | 0~3.200A | 0~ 6.200A | |||||||
| CV 模式范围 | 1.500V ~ 33.00V | 1.500V ~ 33.00V | 1.500V ~ 33.00V | 1.500V~33.00V | |||||||
| 分辨率 | 10mV | 10mV | 10mV | 10mV | |||||||
| 设置精度 | ≦0.1%+30mV | ≦0.1%+30mV | ≦0.1%+30mV | ≦0.1%+30mV | |||||||
| 回读精度 | ≦0.1%+30mV | ≦0.1%+30mV | ≦0.1%+30mV | ≦0.1%+30mV | |||||||
| CC 模式范围 | 0 ~ 3.200A | 0 ~ 3.200A | 0 ~ 3.200A | 0~ 6.200A | |||||||
| 分辨率 | 1mA | 1mA | 1mA | 1mA | |||||||
| 设置精度 | ≦0.3%+10mA | ≦0.3%+10mA | ≦0.3%+10mA | ≦0.3%+10mA | |||||||
| 回读精度 | ≦0.3%+10mA | ≦0.3%+10mA | ≦0.3%+10mA | ≦0.3%+10mA | |||||||
| CR 模式范围 | 1 ~ 1K ohm | 1 ~ 1K ohm | 1 ~ 1K ohm | 1 ~ 1K ohm | |||||||
| 分辨率 | 1 ohm | 1 ohm | 1 ohm | 1 ohm | |||||||
| 设置精度 | ≦0.3%+1 ohm(Voltage≧ | ≦0.3%+1 ohm(Voltage≧ | ≦0.3%+1 ohm(Voltage≧ | ≦0.3%+1 ohm(Voltage≧ | |||||||
| 回读精度 | 0.1V, and current≧0.1A) | 0.1V, and current≧0.1A) | 0.1V, and current≧0.1A) | 0.1V, and current≧0.1A) | |||||||
| 隔离 | 机架和端子 | ≥20MΩ (DC 500V) | |||||||||
| 机架和 AC电源线 | ≥30MΩ (DC 500V) | ||||||||||
| 环境条件 | 操作温度 | 0~40℃ | |||||||||
| 存储温度 | -10~70℃ | ||||||||||
| 操作湿度 | ≦80% RH | ||||||||||
| 存储湿度 | ≦70% RH | ||||||||||
| 其他 | 电源 | AC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz | |||||||||
| 尺寸 & 重量 | 213(W)x 145(H) x 312(D) mm ; 约7.5kg | ||||||||||
