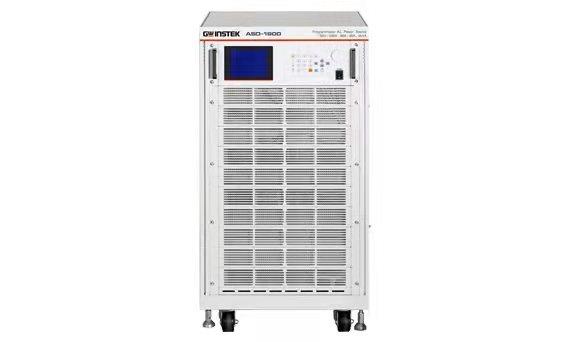

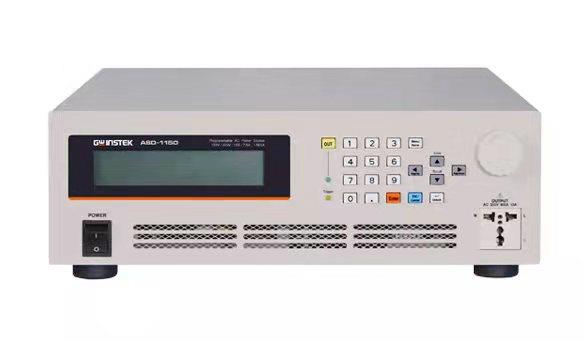

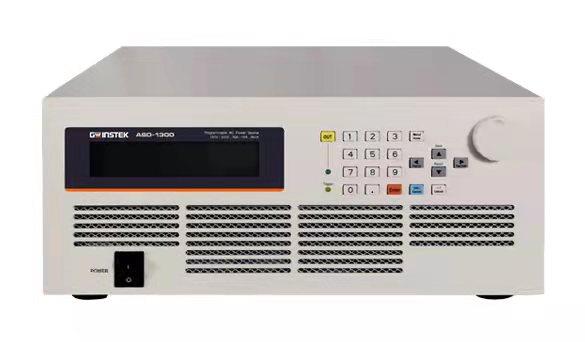

ASD-1150/ASD-1300/ASD-1600/ASD-1900交流电源产品详细规格
| 输入规格(AC rms) | ||||||
| 型号 | ASD-1150 | ASD-1300 | ASD-1600 | ASD-1900 | ||
| 常规输入电压 | 100 Vac to 240 Vac (单相) | 220 Vac to 240 Vac (单相) | 220 Vac to 240 Vac (L-L) 3相4线 Δ 接法 380 Vac to 400 Vac (L-L) 3相5线Y接法 | 220 Vac to 240 Vac (L-L) 3相4线 Δ 接法 380 Vac to 400 Vac (L-L) 3相5线Y接法 | ||
| 输入电压范围 | 90 Vac to 254 Vac | 190 Vac to 254 Vac | 190 Vac to 250 Vac (L-L) 3相4线 Δ 接法 329 Vac to 433 Vac (L-L) 3相5线Y接法 | 190 Vac to 250 Vac (L-L) 3相4线 Δ 接法 329 Vac to 433 Vac (L-L) 3相5线Y接法 | ||
| 相数 | 单相，三相 | 单相，三相 | 三相, 四线 三相,五线 | 三相, 四线 三相,五线 | ||
| 常规输入频率 | 50 Hz to 60 Hz | 50 Hz to 60 Hz | 50 Hz to 60 Hz | 50 Hz to 60 Hz | ||
| 输入频率范围 | 47 Hz to 63 Hz | 47 Hz to 63 Hz | 47 Hz to 63 Hz | 47 Hz to 63 Hz | ||
| 输入功率 | ≤1875 VA | ≤3750 VA | ≤7500 VA | ≤11250 VA | ||
| 功率因数 | ≥0.98 | ≥0.98 | >0.8@满载 (220Vac) >0.3@满载 (380Vac) | ≥0.98 | ||
| 输入电流 | 90Vac: 22A | 190Vac: 20A | 190Vac: 35A/相 329Vac: 25A/相 | 190Vac: 35A/相 329Vac: 25A/相 | ||
| 交流输出规格 (AC rms) | ||||||
| 电压 | 设定范围 | 0.0 V to 150.0 V 0.0 V to 300.0 V | 0.0 V to 150.0 V 0.0 V to 300.0 V | 0.0 V to 150.0 V / 0.0 V to 300.0 V (并联) 0.0 V to 300.0 V / 0.0 V to 600.0 V (串联) | 0.0 V to 150.0 V / 0.0 V to 300.0 V | |
| 分辨率 | 0.1 V | |||||
| 度 | ±(0.2 % of set + 0.3 V / 0.6 V) | ±(0.2 % of set + 0.3 V / 0.6 V) | ±(0.2 % of set + 0.3 V / 0.6 V) （并联) ±(0.4 % of set + 0.6 V / 1.2 V) (串联) | ±(0.2 % of set + 0.3 V / 0.6 V) | ||
| 输出相数 | 单相三线 | 单相三线 | 单相三线 | 三相五线 | ||
| 电流 | 150V | 15 A (150V) | 30 A (150V) | 60 A (150V) | 90 A (150V) (单相) 30 A (150V) (三相) | |
| 300V | 7.5 A (300V) | 15 A (300V) | 30 A (300V) | 45 A (300V) (单相) 15 A (300V) (三相) | ||
| 600V | - | - | 15 A (600V) | - | ||
| 峰值电流 | 150V | 90 A (30Hz~100Hz) 75A (>100Hz~1kHz) | 90 A (30Hz~100Hz) 75A (>100Hz~1kHz) | 180 A (30Hz~100Hz) 150 A (>100Hz~1kHz) | 270 A (150V) (30Hz~100Hz) (单相) 90 A (150V) (30Hz~100Hz) (三相) 225 A (150V) (>100Hz~1kHz) (单相) 75 A (150V) (>100Hz~1kHz) (三相) | |
| 300V | 45 A (30Hz~100Hz) 38A (>100Hz~1kHz) | 45 A (30Hz~100Hz) 38A (>100Hz~1kHz) | 90 A (30Hz~100Hz) 75 A (>100Hz~1kHz) | 135 A (300V) (30Hz~100Hz) (单相) 45 A (300V) (30Hz~100Hz) (三相) 113 A (300V) (>100Hz~1kHz) (单相) 38 A (300V) (>100Hz~1kHz) (三相) | ||
| 600V | - | - | 45 A (30Hz~100Hz) 38 A (>100Hz~1kHz) | - | ||
| 负载PF值 | 0 to 1 (前/滞后) | |||||
| 输出功率 | 1500 VA | 3000 VA | 6000 VA | 9000 VA | ||
| 频率 | 设定范围 | AC模式: 30.0 Hz to 1000.0 Hz, AC+DC模式: 1 Hz to 1000.0 Hz | AC 模式: 30.0 Hz to 1000.0 Hz | |||
| 设定分辨率 | 0.1 Hz (30.0 to 1000.0 Hz) | |||||
| 度 | 0.15% | |||||
| 输出相位角 | 0.0° to 359.9° 可调 (设置分辨率 0.1°) | |||||
| 直流输出规格 | ||||||
| 电压 | 设定范围 | -212 V to +212 V / -424 V to +424 V | - | - | - | |
| 设定分辨率 | 0.1 V | - | - | - | ||
| 度 | ±(0.2 % of set + 0.424 V / 0.848 V) | - | ||||
| 电流 | 150 V | 7 A | - | - | - | |
| 300 V | 3.5 A | - | - | - | ||
| 峰值电流 | 150 V | 14 A | - | - | - | |
| 300 V | 7 A | - | - | - | ||
| 输出功率 | 750W | - | - | - | ||
| 线性稳压率 | 0.1% | |||||
| 负载稳压率 | 0.2% | 0.1% | 0.2% (串联) 0.8% (并联) | 0.2% (三相) 0.8% (单相) | ||
| 输出电压波形失真度 | ≤1% | |||||
| 输出电压反应时间 | 100 us (TYP) | |||||
| 输出效率 | 78% typ.@满载, 110Vac输入 | 80% typ.@满载 | 79% min.@满载 | 80% typ. @满载 | ||
| 测量及显示 | ||||||
| 电压 | RMS, AVG value Resolution | 0.1 V | ||||
| PEAK value Resolution | 0.1 V | |||||
| 电流 | RMS, AVG value Resolution | 0.01 A | ||||
| PEAK value Resolution | 0.01 A | |||||
| 功率 | Active (W) Resolution | 0.1W | ||||
| Apparent (VA) Resolution | 0.1 VA | |||||
| Reactive (VAR) Resolution | 0.1 VAR | |||||
| 负载PF值 | Range | 0.000 to 1.000 | ||||
| Resolution | 0.001 | |||||
| 负载CF值 | Range | 1.2 to 1.414 | ||||
| Resolution | 0.001 | |||||
| 谐波电压 | Range | 可达 39次 | ||||
| 其它 | ||||||
| 保护 | UVP, OCP, OPP, SCP, OTP, FAN FAIL | |||||
| 显示 | STN-LCD, 6英寸 | |||||
| 记忆组功能 | 存储/调用, 基本设置: 4 (0~3 numeric keys) | |||||
| 任意波内存 | 30 (nonvolatile) | |||||
| 一般规格 | ||||||
| 接口 | 标配 | GPIB | IEEE 488.2 接口 | |||
| RS-232C | 符合 EIA-RS-232 规格 | |||||
| 外部控制 | 外部控制 I/O | |||||
| 耐压 | Between input and chassis, output and chassis, input and output | 2210 Vac, 1 分钟 | ||||
| EMC | EN 61326-1 | |||||
| EN 61326-2-2 | ||||||
| EN 61000-3-2 (Class D) | ||||||
| EN 61000-3-3 | ||||||
| EN 61000-4-2/-4-3/-4-4/-4-5/-4-6/-4-8/-4-11 (Class A, Group 1) | ||||||
| EN 55011 (Class A, Group1) | ||||||
| 安全 | EN 61010-1 | |||||
| 环境 | 应用环境 | 室内使用, 过压等级 II | ||||
| 工作温度 | 0 °C to 40 °C | |||||
| 存储温度 | -40 °C to 85 °C | -40 °C to 60 °C | ||||
| 存储湿度 | ≤90 % RH (无凝露) | |||||
| 海拔高度 | ≤ 2000 m | |||||
| 尺寸(mm) | 425(W)×133(H)×525(D) | 425(W)×176(H)×520(D) | 546(W)×844.5(H)×700(D) | 546(W)×1025(H)×700(D) | ||
| 重量（Kg） | 22kg | 28kg | 105kg | 153kg | ||
