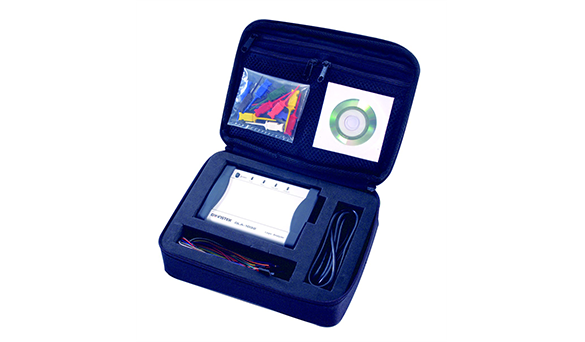

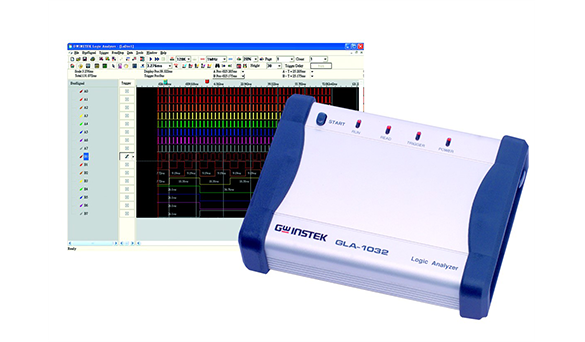

GLA-1000逻辑分析仪产品详细规格
32/16 Input Channel
Time Analysis : Up to 200MHz Internal Sampling Rate
State Analysis : Up to 100MHz External Input Clock
Memory Depth : Up to 2Mbits/1Mbits (Half/Full Channels)
Enable Qualifier : High/Low Level Enable and Enable Delay Function
Signal Analyzer : I2C, RS-232C Protocol Analyzer and Signal Statistics
File Export : Signal Data, Operation Setting and Disy Image
USB 2.0 Supported(1.1 Compatible)
The specifications apply when the GLA-1000 is powered on for at least 30 minutes under +20°C~+30°C.
GLA-1016 | GLA-1032 | GLA-1132 | |
Channels | 16 | 32 | 32 |
MEMORY TOTAL/PER CHANNEL | 4Mbits/256kbits | 4Mbits/128kbits | 32Mbits/1Mbits |
INTERFACE | USB 2.0 (1.1) | ||
OPERATING SYSTEM | Win XP/Win Vista /Win 7 | ||
TIMING ANALYSIS | Maximum 200MHz | ||
STATE ANALYSIS | 0.001Hz ~ 100MHz | ||
TRIGGER | |||
Channel | 16 | 32 | 32 |
Condition | Edge/Pattern | ||
Pre/Post trigger | 0%~ | ||
Level | 1 | ||
Threshold | +6V ~ -6V | ||
Accuracy | ±93mV | ||
Delay | Time delay, Clock event delay | ||
Count | 1 ~ 65535 | ||
Page | Maximum 8191 | ||
INPUT | |||
Maximum Input Voltage | ±30V | ||
Impedance | 500kΩ/10pF | ||
Data Skew | <1.5ns | ||
ENABLE QUALIFIER | |||
Channel | 16 | 32 | 32 |
Enable Condition | Don't Care ,High ,Low | ||
Enable Delay | 1~65535ms | ||
DATA | |||
Compression Channels | 16 | 24 | 24 |
Compression Ratio | Max.255 | ||
Signal Statistics | Postive/Negative, Full cycle within length condition | ||
Protocol Analyzer | I2C, RS-232C ,SPI | ||
CURRENT CONSUMPTION | |||
Static | Max. 200mA | ||
Working | Max. 400mA | ||
POWER DISSIPATION | |||
Static | Max. 1W | ||
Working | Max. 2W | ||
POWER | |||
Interface | USB | ||
Working Voltage | 4.5V~5.5V | ||
DIMENSIONS & WEIGHT | |||
102(D) x 39 (H) x 137(W) mm ; Approx. 340g | |||
