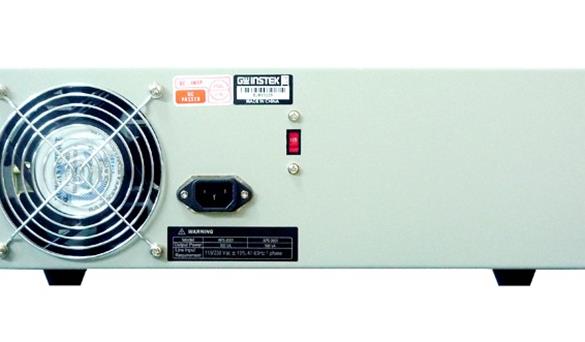

APS-9000线性交流电源产品详细规格
| 规格 | |||
| APS-9301 | APS-9501 | APS-9102 | |
| 输出容量 | |||
| 300VA | 500VA | 1kVA | |
| 输出电压 | |||
| 0.0 ~ 300.0VAC, 0.1V/step (可选择110V/220V) | |||
| 输出电流 | |||
| 0~150V | 2.6Arms | 4.2Arms | 8.4Arms |
| 0~300V | 1.3Arms | 2.1Arms | 4.2Arms |
| 频率 | |||
| 45.0~500.0Hz (50Hz/60Hz selectable);0.1Hz/step (45.0Hz~100.0Hz), 1Hz/step (100.0Hz~500.0HZ) | |||
| 波形 | |||
| Sine wave, < 0.5% TDH (Resistance Load) | |||
| 电压调整率 | |||
| < 0.1% | |||
| 负载调整率 | |||
| + 0.5% + 0.1V | |||
| 内存 | |||
| 4组, 手动储存/呼叫操作功能 | |||
| 保护 | |||
| 过温度保护、过电流保护、短路保护 | |||
| 量测显示范围 | |||
| 范围 | 分辨率 | 精密度 | |
| 计频器 | 0.0~999.9Hz | 0.1Hz | + 0.1Hz |
| RMS 电压表 | 0.0~380.0V | 0.1V | + (1%rdg + 0.1V) |
| RMS 电流表 | 0.000~2.000A | 1.0mA | + (1%rdg + 5mA) |
| 1.80~35.00A | 0.01mA | + (1%rdg + 20mA) | |
| 功率表 | 0.0~360.0W | 0.1W | + (1.5% of rdg + 0.5W) |
| 320.0~3500.0W | 1.0W | + (1.5% of rdg + 1W) | |
| 使用电源 | |||
| AC 115V/230V+15%, 47 ~ 63Hz, 单相 | |||
| 操作温度/湿度 | |||
| 0°C ~ +10°C ; <80% (non-concreting) | |||
| 尺寸 | |||
| 430(W) x 137(H) x 500(D) mm | |||
| 重量 | |||
| 约 20kg | 约 25kg | 约 35kg | |
